Developer Documentation

Introduction

AidStream SDK is a GStreamer-based real-time multimedia data processing toolkit for building AI-powered video and image analytics applications and services. It provides GStreamer plugins accelerated by hardware backends such as GPU, VPU, and NPU, allowing developers to build and deploy end-to-end multimedia AI applications more quickly, more simply, and with greater flexibility.

AidStream is a video framework for building streaming applications. Its goal is to simplify video-plus-AI application development, especially when custom algorithms need to be inserted into the processing flow.

AidStream uses a pipeline-oriented architecture. The pipeline elements are intentionally simple and are divided into input and output stages. After the pipeline starts, the SDK can obtain RGB data between the input and output stages through callback functions. Developers can process the RGB data inside the callback and return the processed frames to the pipeline, after which the frames continue through the downstream output stages.

Version 3 is a major upgrade over the original AidStream release.

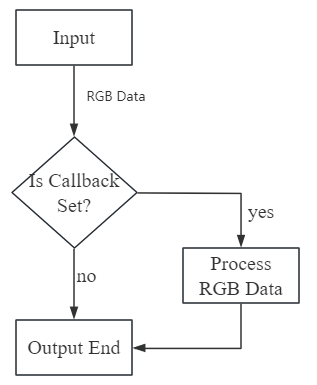

The general AidStream workflow is shown below:

Hardware Performance

For detailed performance figures, see Hardware Performance Reference.

Supported Hardware Platforms and Operating Systems

SoC Platform	Hardware Model	Operating System	GStreamer Plugin Examples
QCS8550	Rhino Pi X1 / MC940 / FV04	Ubuntu 22.04	Plugin Type I
QCS8625	QCS8625	Ubuntu 22.04	Plugin Type I
QCS6490	AGC6490 / Rhino Pi A1	Ubuntu 22.04 / Ubuntu 24.04	Plugin Type II
QCS6490	Ruisha Pi	AidLux Fusion System (Ubuntu 22.04)	Plugin Type III

How to Use This Guide

General examples are provided in two forms:

Reference code based on GStreamer plugin commands: GStreamer plugin examples
Reference code based on the C++ SDK interface: SDK interface examples

GStreamer Plugin Examples

tip

Placeholder conventions used below:

<input-stream-url>: the input camera or streaming source address. Example: rtsp://admin:aidlux123@192.168.111.236:554/h264/ch1/main/av_stream
<output-stream-url>: the target streaming server address. Example: rtsp://admin:aidlux123@192.168.111.115:8554/test-111

After installing the AidStream-GST package, the corresponding model files are located in /usr/local/share/aidstream-gst/example/datas/. Make sure the required model files are present before running the examples.

The directory /usr/local/share/aidstream-gst/example/plugines/gst-plugin-customize is reserved for custom pre-processing and post-processing modules.

Plugin Type I

Plugin Type I Example Index

Platform	Example
QCS8550 / QCS8625	1. Object detection (YOLOv5) 2. Object detection (YOLOv8) 3. Segmentation (YOLOv8)
QCS8550 (FV04)	4. H.264 pipeline 5. H.265 pipeline 6. 4-way mosaic composition

Example 1: YOLOv5 with the AidLite Toolchain

bash

gst-launch-1.0 -e rtspsrc location=<input-stream-url> latency=200 protocols=tcp \
! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 \
! video/x-raw\(memory:GBM\),format=NV12,width=3840,height=2160,framerate=25/1 ! tee name=t \
t. ! queue ! qtimetamux name=mux \
t. ! queue max-size-buffers=4 max-size-bytes=0 max-size-time=0 \
! qtivtransform engine=2 ! video/x-raw\(memory:GBM\),format=BGR \
! ast-aidlite model=./cutoff_yolov5s_sigmoid_qcs8550_w8a8.qnn236.ctx.bin roi-width=3840 roi-height=2160 box-thresh=0.5 nms-thresh=0.45 ! text/x-raw,format=utf8 ! mux. \
mux.src ! qtioverlay engine=1 ! qtic2venc ! h264parse ! rtspclientsink protocols=tcp location=<output-stream-url>

Example 2: YOLOv8 with the AidLite Toolchain

bash

gst-launch-1.0 -e rtspsrc location=<input-stream-url> latency=200 protocols=tcp \
! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 \
! video/x-raw\(memory:GBM\),format=NV12,width=3840,height=2160,framerate=25/1 ! tee name=t \
t. ! queue ! qtimetamux name=mux \
t. ! queue max-size-buffers=4 max-size-bytes=0 max-size-time=0 \
! qtivtransform engine=2 ! video/x-raw\(memory:GBM\),format=BGR \
! ast-aidlite model-type=yolov8-detection model=./cutoff_yolov8s_qcs8550_fp16.qnn231.ctx.bin roi-width=3840 roi-height=2160 box-thresh=0.3 nms-thresh=0.3 ! text/x-raw,format=utf8 ! mux. \
mux.src ! qtioverlay engine=1 ! qtic2venc ! h264parse ! rtspclientsink protocols=tcp location=<output-stream-url>

Example 3: YOLOv8 Segmentation with the AidLite Toolchain

bash

gst-launch-1.0 -e \
rtspsrc location=<input-stream-url> latency=200 protocols=tcp \
! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 \
! video/x-raw\(memory:GBM\),format=NV12,width=3840,height=2160,framerate=25/1 ! tee name=t \
t. ! queue ! qtivcomposer name=mixer1 ! queue ! qtic2venc ! h264parse ! rtspclientsink protocols=tcp location=<output-stream-url> \
t. ! queue max-size-buffers=4 max-size-bytes=0 max-size-time=0 \
! qtivtransform engine=2 ! video/x-raw\(memory:GBM\),format=BGR \
! ast-aidlite-video model-type=yolov8-segmentation model=./cutoff_yolov8s-seg_qcs8550_fp16.qnn236.ctx.bin roi-width=3840 roi-height=2160 box-thresh=0.3 nms-thresh=0.3 \
! video/x-raw\(memory:GBM\),format=BGRA,width=3840,height=2160,framerate=25/1 \
! mixer1.

The following examples are primarily intended for the FV04 hardware variant.

Example 4: H.264 Pipeline

bash

gst-launch-1.0 rtspsrc location=<input-stream-url> \
! rtph264depay \
! h264parse \
! qtic2vdec \
! qtivtransform engine=2 \
! video/x-raw,format=RGB \
! qtivtransform engine=2 \
! qtic2venc \
! queue \
! h264parse \
! rtspclientsink protocols=tcp location=<output-stream-url>

Example 5: H.265 Pipeline

bash

gst-launch-1.0 -e \
rtspsrc location=<input-stream-url> ! rtph265depay ! h265parse ! qtic2vdec ! \
qtivtransform engine=2 ! video/x-raw\(memory:GBM\),format=NV12,width=3840,height=2160,framerate=20/1 ! qtivtransform engine=2 ! \
queue ! tee name=split \
split. ! queue ! qtivcomposer name=mixer1 ! queue ! video/x-raw,format=NV12,width=3840,height=2176,framerate=20/1 ! qtic2venc ! queue ! h265parse ! mp4mux ! filesink location=./3840_video_4k_20fps.mp4 sync=false \
split. ! queue ! qtimlvconverter name=qmlconvert_1 ! qtimlqnn name=qtimlqnn_1 model=./640_yolov8s_qcs8550_w8a8.qnn228.aarch64.gcc9_4.so backend=/usr/lib/libQnnHtp.so ! \
qtimlvdetection threshold=75.0 results=10 module=ml-vdetection-yolov8 labels=./yolov8.labels ! \
video/x-raw\(memory:GBM\) ! capsfilter name=ml_capsfilter ! mixer1.

Example 6: 4-Way Mosaic Composition

tip

<1920,1080> can be replaced with any other supported resolution, such as <3840,2160>.

bash

gst-launch-1.0 -e qtivcomposer name=mixer \
sink_0::position="<0, 0>" sink_0::dimensions="<1920, 1080>" \
sink_1::position="<1920, 0>" sink_1::dimensions="<1920, 1080>" \
sink_2::position="<0, 1080>" sink_2::dimensions="<1920, 1080>" \
sink_3::position="<1920, 1080>" sink_3::dimensions="<1920, 1080>" \
! video/x-raw\(memory:GBM\),format=NV12,width=3840,height=2160 ! qtic2venc ! h264parse config-interval=1 ! rtspclientsink protocols=tcp location=<output-stream-url> \
rtspsrc location=<input-stream-url> latency=100 ! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 ! mixer. \
rtspsrc location=<input-stream-url> latency=100 ! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 ! mixer. \
rtspsrc location=<input-stream-url> latency=100 ! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 ! mixer. \
rtspsrc location=<input-stream-url> latency=100 ! rtph264depay ! h264parse config-interval=-1 ! qtic2vdec ! qtivtransform engine=2 ! mixer.

Plugin Type II

Plugin Type II Example Index

Platform	Example
QCS6490	1. Ubuntu 22.04 2. Ubuntu 24.04

Example 1: Ubuntu 22.04

bash

gst-launch-1.0 rtspsrc location=<input-stream-url> \
! rtph264depay \
! h264parse \
! v4l2h264dec capture-io-mode=5 output-io-mode=2 \
! qtivtransform \
! video/x-raw,format=RGB \
! qtivtransform \
! video/x-raw\(memory:GBM\),format=NV12,colorimetry=bt601 \
! v4l2h264enc capture-io-mode=2 output-io-mode=5 \
! h264parse \
! rtspclientsink location=<output-stream-url>

Example 2: Ubuntu 24.04

bash

gst-launch-1.0 rtspsrc location=<input-stream-url> latency=200 protocols=tcp \
! rtph264depay \
! h264parse \
! v4l2h264dec capture-io-mode=4 output-io-mode=4 \
! video/x-raw,format=NV12,colorimetry=bt709 \
! qtivtransform engine=3 \
! video/x-raw,format=RGB,colorimetry=bt709 \
! qtivtransform engine=3 \
! video/x-raw,format=NV12,colorimetry=bt709 \
! v4l2h264enc capture-io-mode=4 output-io-mode=4 \
! h264parse \
! rtspclientsink location=<output-stream-url>

Plugin Type III

tip

This plugin type applies to the following platform and operating system:

Platform: QCS6490
Operating system: AidLux Fusion System (Ubuntu 22.04)

Before running on the 6490 AidLux Fusion System (Ubuntu 22.04), set the following environment variables:

bash

export GST_PLUGIN_PATH=/opt/ubun20/usr/lib/aarch64-linux-gnu/gstreamer-1.0/
export LD_LIBRARY_PATH=/opt/ubun20/usr/lib/aarch64-linux-gnu/:/opt/ubun20/usr/lib:/usr/local/lib/aidlux_opencv/lib/:$LD_LIBRARY_PATH

bash

gst-launch-1.0 rtspsrc location=<input-stream-url> \
! rtph264depay \
! h264parse \
! qtivdec \
! qtivtransform \
! video/x-raw,format=RGB \
! qtivtransform \
! qtic2venc \
! video/x-h264,profile=baseline \
! h264parse \
! rtspclientsink location=<output-stream-url>

SDK Interface Examples

tip

To compile against the AidStream SDK C++ API, include the AidStream SDK header:

cpp

#include "aidstream.h"

When linking, specify the AidStream shared library, for example:

g++ example.cpp -o demo -L/usr/local/lib/ -laidstream-gst -lopencv_core -I/usr/local/include/aidlux/aidstream-gst/ -I/usr/local/lib/aidlux_opencv/include/opencv4/

AidStream SDK header: /usr/local/include/aidlux/aidstream-gst/aidstream.h

AidStream SDK library: /usr/local/lib/libaidstream-gst.so

The only interface function that is strongly recommended for application code is:

cpp

int start_stream(string stream_id, GetImageCB &cb)

Use this function together with the configuration file /usr/local/share/aidstream-gst/conf/aidstream-gst.conf. Because stream configurations can vary significantly, starting streams through the configuration file is strongly recommended.

The installation package also provides example programs and a matching CMakeLists.txt under /usr/local/share/aidstream-gst/example/cxx/. See the sections below for details.

Implement Push/Pull Streaming from the Sample Program

For configuration file details, see AidStream configuration file reference.

The default shared configuration file is aidstream-gst.conf, located in /usr/local/share/aidstream-gst/conf/.

Build and run it as follows:

Enter /usr/local/share/aidstream-gst/example/cxx/, create a build directory, and switch into it.

Run CMake in the build directory.

On the 8550 / 6490 AIBox platform:

cmake ..

On the 6490 QL platform, run the following instead because it uses a different data-processing path and inference model:

cmake -DV4L2=ON ..

Then run:

make

After a successful build and link step, four executables are produced: demo, qnn_rtsp, rtsp, and start.

After the configuration file is set, you can quickly start a stream with the start executable:

# For example, start stream ID 1
start 1

You can quickly start a push/pull stream with the built-in inference model using qnn_rtsp:

# Start it the same way as `start`
qnn_rtsp 1
# Model directory: /usr/local/share/aidstream-gst/example/datas/

You can quickly start a multi-threaded push/pull stream with rtsp. The shipped example is configured for 2 threads, and you can change the code to launch more threads if needed.

rtsp

Select Input and Output Streams with Configuration Parameters

For configuration file details, see AidStream configuration file reference.

cpp

#include <cstdlib>
#include <string>
#include <iostream>
#include "aidstream.h"

using namespace std;
using namespace Aidlux::AidStream;

int8_t my_img_cb(const Image &img)
{
    printf("width: %d, height: %d, fps: %f, id:%s  \n", img.width, img.height, img.fps, img.stream_id.c_str());
    return 0;
}

int main(int argc, char* argv[])
{
    string _idx;
    if (argc > 1)
    {
        _idx = argv[1];
    }
    else
    {
        _idx = "1";
    }

    Aidlux::AidStream::GetImageCB callback = my_img_cb;
    start_stream(_idx, callback);

    return 0;
}

tip

Placeholder conventions:

<input-stream-url>: for example, rtsp://admin:aidlux123@192.168.110.234:554
<output-stream-url>: for example, rtsp://192.168.111.115:8554

Read an RTSP stream, perform no additional processing, and publish the output as an RTSP stream to <output-stream-url>/aidstream-gst-rtsp-test.

cpp

#include <cstdlib>
#include <string>
#include <iostream>
#include "aidstream.h"

using namespace std;
using namespace Aidlux::AidStream;

int8_t my_img_cb(const Image &img)
{
    printf("width: %d, height: %d, fps: %f\n", img.width, img.height, img.fps);
    return 0;
}

int main()
{
    string rtsp_path = "<input-stream-url>/h264/ch1/main/av_stream";
    int res = start_stream_input_rtsp(rtsp_path, my_img_cb, StreamType::RTSPSINK, "<output-stream-url>/aidstream-gst-rtsp-test");
    if (res != 0)
    {
        return -1;
    }
    return 0;
}

Start multiple streams at the same time without additional processing

cpp

#include <cstdlib>
#include <thread>
#include <string>
#include <iostream>
#include "aidstream.h"

using namespace std;
using namespace Aidlux::AidStream;

int8_t my_img_cb(const Image &img)
{
    printf("width: %d, height: %d, fps: %f\n", img.width, img.height, img.fps);
    return 0;
}

int main(int argc, char* argv[])
{
    clogger("./aidclog_aidstream_c");
    set_log_level(GSTLogLevel::SINFO);
    Aidlux::AidStream::GetImageCB callback = my_img_cb;

    std::thread t1(start_stream, "1", ref(callback));
    std::thread t2(start_stream, "7", ref(callback));

    t1.join();
    t2.join();

    return 0;
}

Asynchronous model processing can be used when inference latency is high.

tip

The complete sample is relatively long, so only the main function is shown below. For the full source code, see /usr/local/share/aidstream-gst/example/cxx/qnn_rtsp.cpp (for 6490 QL, refer to qnn_rtsp_v4l2.cpp).
For real-time push/pull streaming, the time budget available to the application is very small. For example, at 25 fps the processing window is only 20 ms. Asynchronous processing is therefore a compromise. It can help when inference takes longer, but it cannot fully eliminate the real-time impact on display latency. In short, strict real-time responsiveness and long model inference latency are fundamentally at odds.

cpp

int main(int argc, char *argv[]) {
    // Logging is optional in most cases.
    // Aidlux::AidClog::clog_log_to_file("./snpe2_yolov5_multi_");
    // Aidlux::AidClog::clog_set_log_level(Aidlux::AidClog::LogLevel::INFO);

    init_share_mem_vec();

    if (argc < 2) {
        std::cerr << "Parameter missing, param1: streamId[reference /usr/local/share/aidstream-gst/conf/aidstream-gst.conf file]. eg: ./example 7" << std::endl;
        return -1;
    }
    int r = model_init();
    if (r != 0)
    {
        std::cerr << "model init failed" << std::endl;
        exit(1);
    }
    Aidlux::AidStream::GetImageCB callback = myCallback;
    std::set<std::string> validIDs = loadValidIDs();
    std::vector<std::thread> threads;

    bool allIDsFound = true;
    std::string arg = argv[1];
    // Start a worker thread only when the ID exists in the configuration file.
    if (validIDs.find(arg) == validIDs.end())
    {
        allIDsFound = false;
    }
    if (!allIDsFound)
    {
        std::cerr << "Parameter has an id that is not included in the configuration file, please check" << std::endl;
        return -1;
    }
    else
    {
        // Main GStreamer thread for fetching frames.
        threads.emplace_back(start_stream, arg, ref(callback));
        // Start three inference worker threads.
        // The required thread count depends on model latency.
        // Longer inference times require more workers. For example,
        // if inference takes 50 to 60 ms, three workers are typically enough.
        // If the model does not support concurrency, use only one worker.
        threads.emplace_back(update_data, 1);
        threads.emplace_back(update_data, 2);
        threads.emplace_back(update_data, 3);
    }
    for (auto &t : threads)
    {
        if (t.joinable())
        {
            t.join();
        }
    }

    return 0;
}

GenAI Inference Toolkit

GenAI HTTP Service

API Documentation

AI Development

Generative AI Development

Audio AI Development

Model Farm

Developer Documentation ​

Introduction ​

Hardware Performance ​

Supported Hardware Platforms and Operating Systems ​

How to Use This Guide ​

GStreamer Plugin Examples ​

Plugin Type I ​

Plugin Type I Example Index ​

Example 1: YOLOv5 with the AidLite Toolchain ​

Example 2: YOLOv8 with the AidLite Toolchain ​

Example 3: YOLOv8 Segmentation with the AidLite Toolchain ​

Example 4: H.264 Pipeline ​

Example 5: H.265 Pipeline ​

Example 6: 4-Way Mosaic Composition ​

Plugin Type II ​

Plugin Type II Example Index ​

Example 1: Ubuntu 22.04 ​

Example 2: Ubuntu 24.04 ​

Plugin Type III ​

SDK Interface Examples ​

Implement Push/Pull Streaming from the Sample Program ​

Select Input and Output Streams with Configuration Parameters ​

Start multiple streams at the same time without additional processing ​

Developer Documentation

Introduction

Hardware Performance

Supported Hardware Platforms and Operating Systems

How to Use This Guide

GStreamer Plugin Examples

Plugin Type I

Plugin Type I Example Index

Example 1: YOLOv5 with the AidLite Toolchain

Example 2: YOLOv8 with the AidLite Toolchain

Example 3: YOLOv8 Segmentation with the AidLite Toolchain

Example 4: H.264 Pipeline

Example 5: H.265 Pipeline

Example 6: 4-Way Mosaic Composition

Plugin Type II

Plugin Type II Example Index

Example 1: Ubuntu 22.04

Example 2: Ubuntu 24.04

Plugin Type III

SDK Interface Examples

Implement Push/Pull Streaming from the Sample Program

Select Input and Output Streams with Configuration Parameters

Start multiple streams at the same time without additional processing
