Rhino Pi-A1 (AidLux OS)

Product Overview

Rhino Pi-A1 is a cost-effective edge computing development board from Aiga based on the Qualcomm QCS6490 platform, featuring 12TOPS AI computing power. The development board provides rich interfaces and supports multiple network connection modes to meet connection requirements in different application scenarios. It has powerful AI capabilities with numerous pre-built algorithms and cases covering smart parks, smart retail, smart security, transparent kitchen, smart transportation, and other fields, ready to use out of the box. It achieves multi-industry and multi-scenario intelligent requirements with low cost and high efficiency.

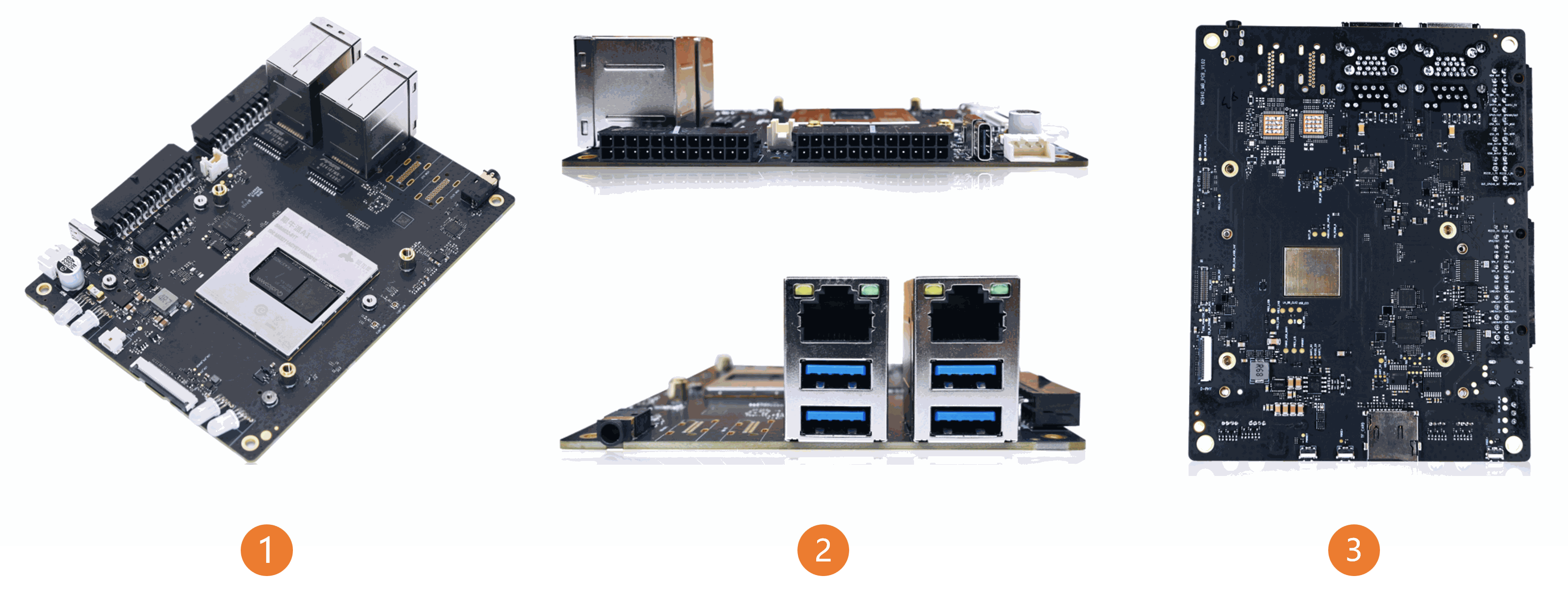

Product Appearance

No.	View	No.	View	No.	View
1	Rhino Pi-A1 Front View	2	Rhino Pi-A1 Side View	3	Rhino Pi-A1 Back View

Product Specifications

Item	Parameters
Platform	Qualcomm Dragonwing QCS6490
AI Performance	~12 TOPS INT8
OS	AidLux (Android14 + Ubuntu22.04)
CPU	1xCortexA78 2.7GHz, 3xCortexA78 2.4GHz, 4xCortexA55 1.9GHz, 100k DMIPS, 6nm process
GPU	Adreno 643, computing power 1100(GFLOPS)
RAM	8GB LPDDR4
Storage	128GB UFS3.1
Video Codec	Decode: 4K@60fps H.264/H.265 Encode: 4K@30fps H.264/H.265
Camera Module	D-PHY-Camera x1, IMX577(12M)
Wireless Connection	Wi-Fi: 802.11ax, 2.4G/5G DBS, 2*2 MIMO BT: 5.1
USB	USB-A3.0:x4, USB-C3.01:x1 supports DP1.4
Audio	3.5mm:x1
Network Interface	LAN(RJ45)x2, one 2.5Gbps, one 1Gbps
Power	DC12V/24V 3A
Operating Temperature	-20℃ ~ +50℃
Dimensions	100x130x39.25mm

Interface Description

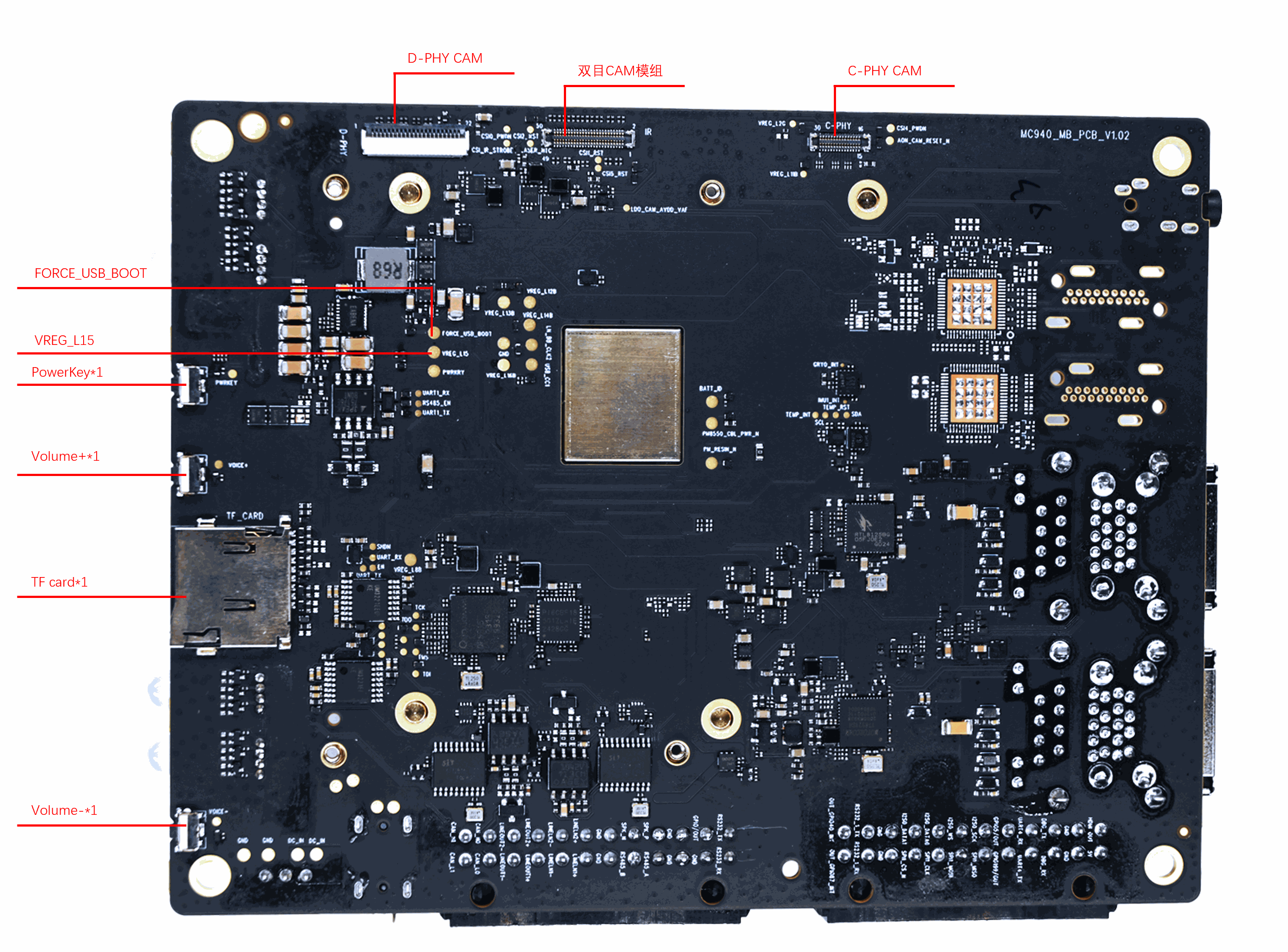

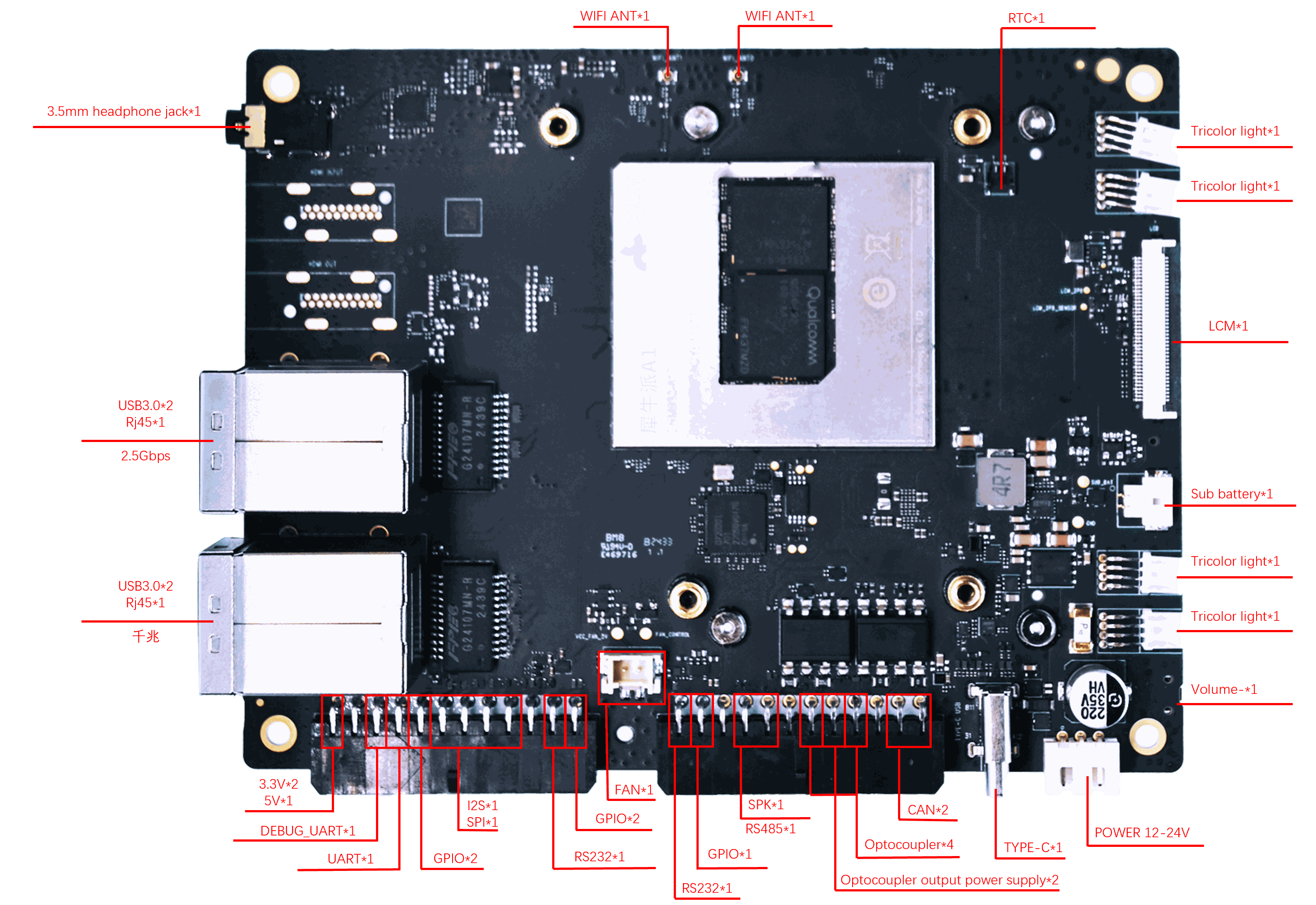

Hardware board interface diagram:

alt text

Table 1. Onboard Interface Table:

Interface	Quantity/Specification
C-PHY-Camera Module	NA
D-PHY-Camera Module	x 1, IMX577(12M)
Stereo Structured Light Camera Module	x 1, IMX577(12M)+2*OV9282(2M)
LCD	x 1, MIPI interface, default ST7703, 720*1280 (customers can customize FPC adapter, resolution can be increased)
USB Type-A	x 4, USB3.0, host mode (4 channels total bandwidth support 5Gbps)
USB Type-C	x 1, USB3.0, supports DP1.4
LAN(RJ45)	x 2, one 2.5Gbps, one 1Gbps
CAN	x 2
RS232	x 2, transmit serial information
RS485	x 1, transmit serial information
Optocoupler Input	x 2, 5~30V
Optocoupler Output	x 2, 5~30V
TF Card	x 1
I2S	x 1, 3.3V
SPI	x 1, 3.3V
GPIO	x 5, 3.3V
UART	x 1, 3.3V
Debug UART	x 1, for debug
Headphone	x 1, 3.5mm
SPK	x 1, 1.65W
Tri-color LED	x 4, tri-color indicator lights: red, green, blue
KEY	x 3, power/vol+/vol-
Power Interface 12V/24V	x 1, external adapter power supply
RTC	x 1, CR2032(225mAh)
ANT	x 2, WIFI/BT antenna
Operating Temperature	-30℃~+75°C
Storage Temperature	-40°C ~ +90°C
Dimensions	100 x 130 x 39.25mm
