Power Interface

Rhino Pi X1 supports wide voltage DC input, 12V or 24V, power adapter should be at least 36W.

DC barrel power connector 12V 3A [DC5.5*2.5mm]

Hardware Connection

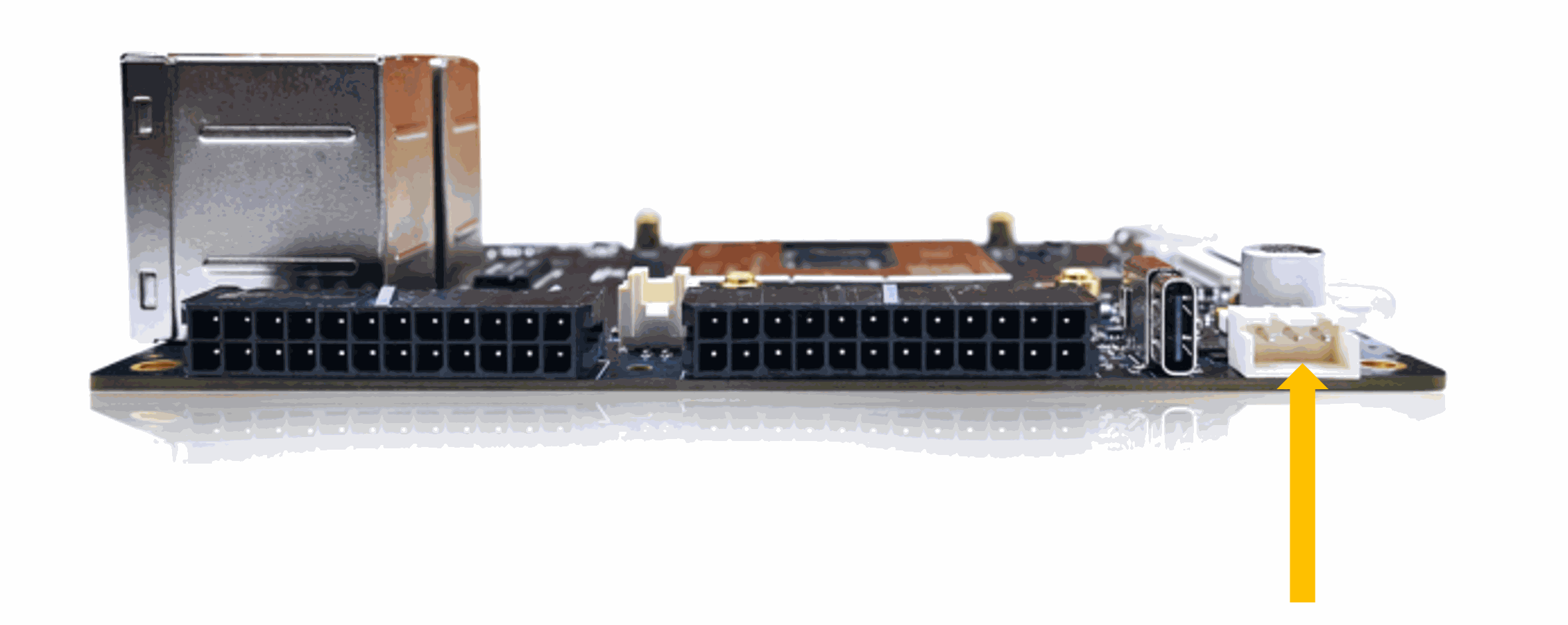

Use the included DC barrel power adapter cable to connect a DC12V/24V 3A power adapter to the mainboard power interface.

Normal Boot

Device firmware versions may vary, so LED status during boot differs. Refer to the following:

Integrated OS Firmware

• Boot process: Power indicator blue LED stays on

Ubuntu Firmware

• Boot process: Green LED away from power connector lights up and blinks, then both green LEDs stay on when system is ready.
