Rhino Pi-X1 (Ubuntu OS)

Overview

Rhino Pi-X1 is a high-performance embedded computing device based on the Qualcomm® QCS8550 platform, specifically designed for Edge AI, Industrial IoT, and smart computing terminals.

The Rhino Pi-X1 is equipped with the Qualcomm® QCS8550 SoC, featuring a 1+2+3 tri-cluster architecture (1× Kryo Prime @ 3.2GHz, 2× Kryo Gold @ 2.8GHz, 3× Kryo Silver @ 2.0GHz). This design balances powerful performance with low power consumption. It includes an integrated Adreno 740 GPU and an efficient AI acceleration engine, delivering an AI computing power of up to 48 TOPS (INT8), providing exceptional multimedia processing and AI inference capabilities.

The X1 supports 4K/8K video encoding and decoding, multiple CSI camera interfaces, HDMI input and output, and Wi-Fi 7 / Bluetooth 5.3 wireless connectivity. It offers comprehensive interface expansion, including USB 3.0, CAN, SPI, I2C, PWM, UART, LAN/WAN. The system runs on the AidLux Fusion System (Android 13 + Ubuntu 22.04) or Ubuntu 22.04, providing flexible support for AI application development and edge computing deployment.

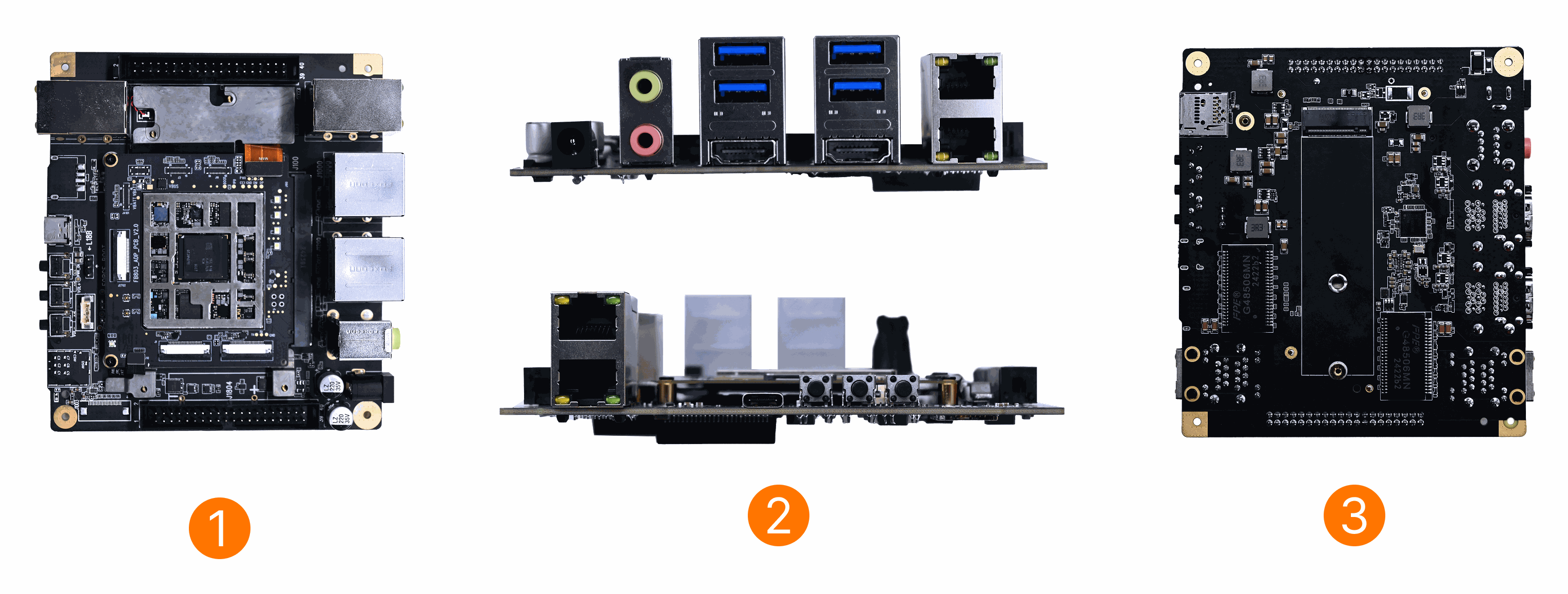

Appearance

No.	View	No.	View	No.	View
1	Rhino Pi-X1 Front View	2	Rhino Pi-X1 Side View	3	Rhino Pi-X1 Rear View

Specifications

Item	Parameter
Platform	Qualcomm® QCS8550
AI Performance	~48 TOPS INT8
OS	AidLux (Android13 + Ubuntu22.04)
CPU	1x Kryo Prime 3.2 GHz + 2x Kryo Gold 2.8 GHz + 3x Kryo Silver 2.0 GHz
GPU	Adreno 740
Operating Memory	16GB LPDDR5X
Storage	128GB
Video Codec	Decode: 4K@240fps or 8K@60fps H.264/H.265 Encode: 4K@120fps or 8K@30fps H.264/H.265
Camera	x3
HDMI	HDMI OUT X1, HDMI IN x1, supports HDMI1.4, supports 1080P@60Hz, supports 4K@30Hz
Wireless Connectivity	Wi-Fi7: 802.11be, 2.4G/5G/6G HZ DBS, 2*2 MIMO BT: 5.3
USB	USB-A 3.0: x4, USB3.0 Type-C: x1, supports DP1.4
Audio	Line in, 3.5mm Interface; Line out, 3.5mm Interface
Network Interface	LAN * 3, WAN * 1
RTC	x1, CR2032 (225mAh)
Power	DC12V 5A
Operating Temperature	-20℃ ~ +60℃
Dimensions	125x110x35.5mm
Other Interfaces	40PIN Connector, MIPI—DSI

Interface Description

Interface No.	Interface Name	Function Description
1	40 PIN 3.3V GPIO	Same function definition as Raspberry Pi 40 PIN interface
2/3/7	Camera Interface	MIPI CSI DPHY 4lane interface, same definition as Raspberry Pi
4	WIFI/BT Antenna	WIFI/BT antenna interface, Ipex Gen 4
5	Fan Connector	5V fan drive interface
6	EDL Interface	Emergency Download setting interface (used in emergency)
8	RTC Battery Connector	RTC battery connector
9	40 PIN 1.8V GPIO	40 PIN 1.8V GPIO expansion interface
10	QCS8550 Core Board	QCS8550 core board
11	DC_IN	Device power input, voltage range: 12V, typical value 12V@5A
12	LINE OUT	Audio output
13	LINE IN	Audio input
14	HDMI_OUT	HDMI signal output, Resolution/Frame rate: 2K/120fps
15	HDMI_IN	HDMI signal input, Resolution/Frame rate: 2K/30fps
16	USB3.0	4-way USB3.0 interface
17	WAN	RJ45 network port, connectable to the internet
18	LAN	RJ45 network port

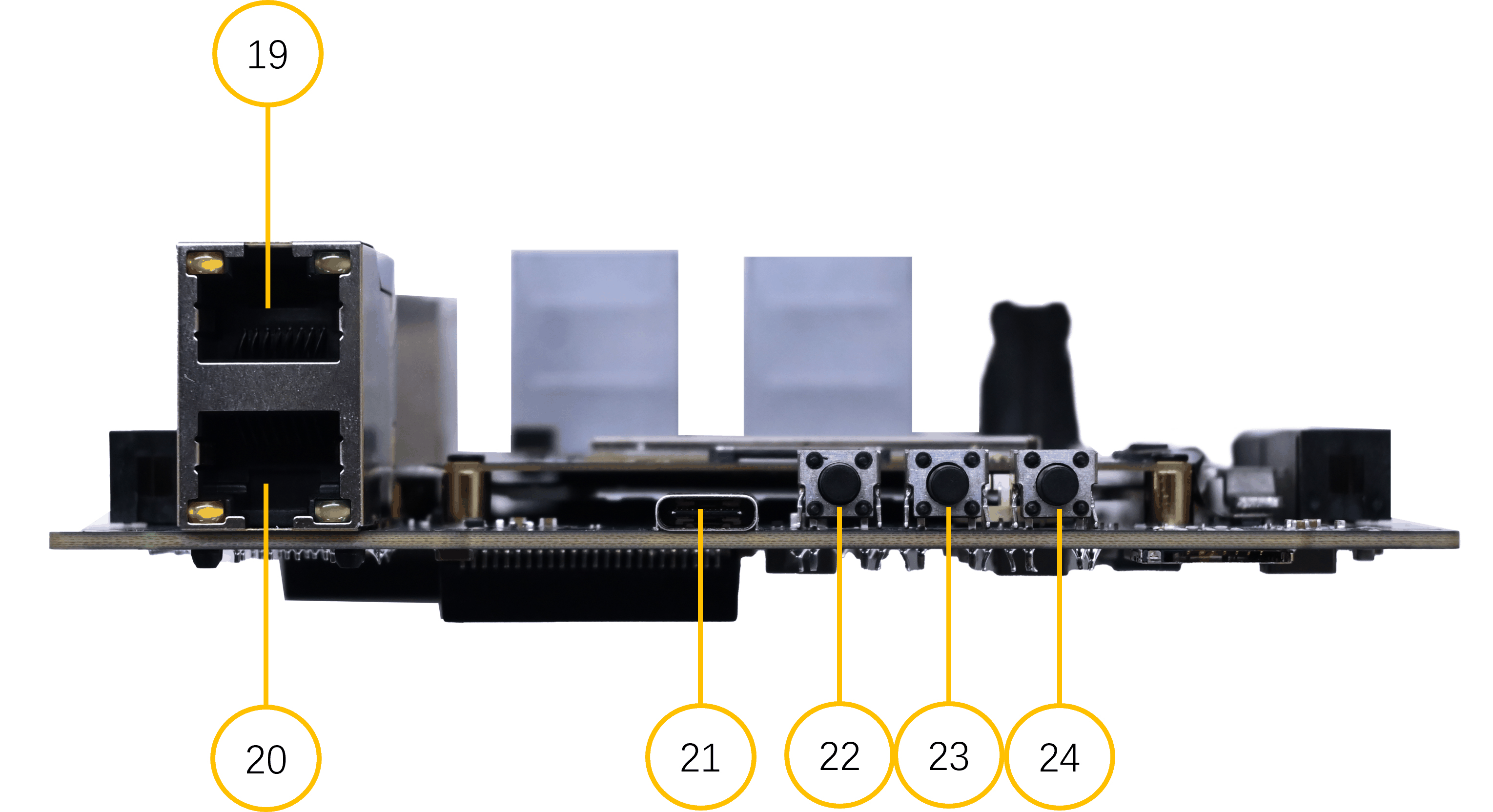

19	LAN	RJ45 network port
20	LAN	RJ45 network port
21	TYPE-C	USB TYPE-C interface
22	POWER	Power button
23	Volume +	Volume up button
24	Volume -	Volume down button
25	TF Card Slot	Micro SD card slot
26	M.2 Interface	M.2 M Key 2280 interface
