Pin Definition

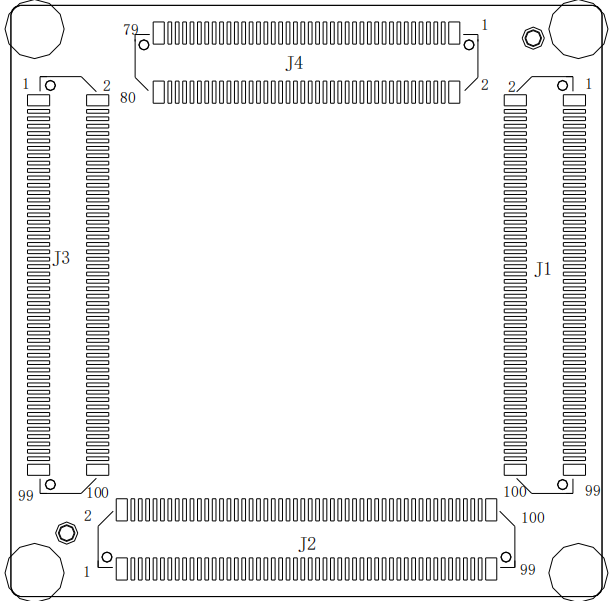

Connectors

The core board connects to the base board through the following Panasonic board-to-board connectors:

Connector	Model	Mating Connector Model
J1, J2, J3	Panasonic AXK600337YG	AXK500137YG
J4	Panasonic AXK680337YG	AXK580137YG

J1 Pin Definition

PIN#	Pin Signal	I/O	Description	Notes
88,90,92,94,96,98,100	USB_VBUS	PI/PO	USB_VBUS, supports QC5.0 fast charge input, voltage range 3.7 V to 21.5 V
85,87,89,91,93,95,97,99	VBATT	PI	Core board power supply, voltage range 3.5 to 4.2 V
84,86	VREG_BOB1	PO	Core board output BUCK OR BOOST, powers CODEC IC
1,2,24,27,44,50,51,55,59,74,76,77,78,79,80,81,82,83	GND	G	Digital ground
75	VCOIN	PI/PO	RTC backup power
73	VBATT_CONN_VSENSE_P	AI	Battery voltage sense signal
71	VBATT_CONN_VSENSE_M	AI	Battery voltage sense signal
72	PM8550_THERM1	AI	PM8550 ADC1
70	PM8550_THERM4	AI	PM8550 ADC4
69	VBATT_PACK_SNS_M	AI	Remote sense for second cell voltage in 1S2P battery
67	BATT_ID	AI	Battery identification, detection, and BSI communication
65	BATT_THERM	AI	Battery temperature sensor
63	USB0_THERM	AI	Type-C temperature sensor
61	USB_LD_SW_EN	I/O	PM8550B GPIO03
66,68	VREG_S6G_1P86	PO	1.8 V output
64	VREG_L8B_1P8	PO	1.8 V output	SD card level shifter power
62	VREG_L6B_1P8	PO	1.8 V output
60	VREG_1P2_SYS	PO	1.2 V output	SD card level shifter power
58	VREG_L13B_3P0	PO	3 V output
56	VREG_L14B_3P2	PO	3 V output
54	VREG_L15B_1P8	PO	1.8 V output
52	VREG_L16B_2P8	PO	2.8 V output
48	USB0_HS_DM	I/O	USB0 data -	USB 2.0 OTG
46	USB0_HS_DP	I/O	USB0 data +	USB 2.0 OTG
57	PMK_CLK7_LN	AO	Reserved 38.4 MHz clock output
53	SLEEP_CLK	AO	32.7645 kHz clock output	WiFi sleep clock
49	AOSS_SLEEP_INDICATOR	AI	Reserved Always-On SubSystem sleep detection signal
47	GPIO4_I2C1_SDA	OD	General-purpose I2C bus, 1.8 V level
45	GPIO5_I2C1_SCL	OD	General-purpose I2C bus, 1.8 V level
43	GPIO14*	DI	GPIO14, 1.8 V level
42	PM_CBL_PWR_N	I/O	Boot config signal, auto power-on	Active low
41	GPIO16*	I/O	GPIO16, 1.8 V level
40	KPD_PWR_N	DI	Power on/off signal, active low
39	GPIO17*	I/O	GPIO17, 1.8 V level
38	PM_RESIN_N	DI	Reset signal, active low
37	GPIO18*	I/O	GPIO18, 1.8 V level
36	PM_KYPD_VOLP_N	DI	Volume control signal
35	GPIO19*	I/O	GPIO19, 1.8 V level
34	GPIO7	I/O	GPIO7, 1.8 V level	Camera power control signal
33	GPIO20_I2C_SDA	OD	General-purpose I2C bus, 1.8 V level
31	GPIO21_I2C_SDA	OD	General-purpose I2C bus, 1.8 V level
32	GPIO8*	DI	GPIO8, 1.8 V level
30	GPIO6	DO	GPIO6, 1.8 V level
29	PM8550_PWM_OUT_GPIO9	DO	PM8550 PWM4	For eDP/MIPI LCM backlight adjustment
28	USB0_OVP_SNS	AI	USB charging overvoltage detection
26	USB0_OVP_DRV	AO	USB overvoltage protection FET drive signal
25	DSI0_NC_CLK1_M	AO	MIPI DSI0 clock signal	For Split-link
23	DSI0_NC_CLK1_P	AO	MIPI DSI0 clock signal	For Split-link
21	DSI0_NC_LN3_M	AO	MIPI DSI0 data signal	DSI0
19	DSI0_C2_LN3_P	AO	MIPI DSI0 data signal	DSI0
17	DSI0_C1_CLK_M	AO	MIPI DSI0 clock signal	DSI0
15	DSI0_B1_CLK_P	AO	MIPI DSI0 clock signal	DSI0
13	DSI0_A0_LN0_P	AO	MIPI DSI0 data signal	DSI0
11	DSI0_B0_LN0_M	AO	MIPI DSI0 data signal	DSI0
9	DSI0_B2_LN2_M	AO	MIPI DSI0 data signal	DSI0
7	DSI0_A2_LN2_P	AO	MIPI DSI0 data signal	DSI0
5	DSI0_C0_LN1_P	AO	MIPI DSI0 data signal	DSI0
3	DSI0_A1_LN1_M	AO	MIPI DSI0 data signal	DSI0
22	DSI1_A0_LN0_P	AO	MIPI DSI1 data signal	DSI1
20	DSI1_B0_LN0_M	AO	MIPI DSI1 data signal	DSI1
18	DSI1_C0_LN1_P	AO	MIPI DSI1 data signal	DSI1
16	DSI1_A1_LN1_M	AO	MIPI DSI1 data signal	DSI1
14	DSI1_B1_CLK_P	AO	MIPI DSI1 clock signal	DSI1
12	DSI1_C1_CLK_M	AO	MIPI DSI1 clock signal	DSI1
10	DSI1_C2_LN3_P	AO	MIPI DSI1 data signal	DSI1
8	DSI1_NC_LN3_M	AO	MIPI DSI1 data signal	DSI1
6	DSI1_B2_LN2_M	AO	MIPI DSI1 data signal	DSI1
4	DSI1_A2_LN2_P	AO	MIPI DSI1 data signal	DSI1

J2 Pin Definition

PIN#	Pin Signal	I/O	Description	Notes
1	GPIO63_UART3_RXD	DI	UART data input, 1.8 V level	General-purpose UART
3	GPIO62_UART3_TXD	DO	UART data output, 1.8 V level	General-purpose UART
2	GPIO71_UART4_RXD	DI	UART data input, 1.8 V level	General-purpose UART
4	GPIO70_UART4_TXD	DO	UART data output, 1.8 V level	General-purpose UART
5	GPIO61	I/O	GPIO61, 1.8 V level
6	GPIO69	I/O	GPIO69, 1.8 V level
7*	GPIO60	I/O	GPIO60, 1.8 V level
8	GPIO68	I/O	GPIO68, 1.8 V level
9	GPIO119_UART8_RXD	DI	UART data input, 1.8 V level	General-purpose UART
11	GPIO118_UART8_TXD	DO	UART data output, 1.8 V level	General-purpose UART
10	GPIO67_SPI_CSN	DO	SPI chip select, 1.8 V level	General-purpose SPI
12	GPIO66_SPI_CLK	DO	SPI clock, 1.8 V level	General-purpose SPI
14	GPIO65_SPI_MOSI	DO	SPI MOSI, 1.8 V level	General-purpose SPI
16	GPIO64_SPI_MISO	DI	SPI MISO, 1.8 V level	General-purpose SPI
13	GPIO120_CAM4_RST_N	DO	Camera 4 reset, 1.8 V level	RST for CSI4
15	GPIO122_CAM3_RST_N	DO	Camera 3 reset, 1.8 V level	RST for CSI3
17	GPIO121_CAM2_RST_N	DO	Camera 2 reset, 1.8 V level	RST for CSI2
19	GPIO117_CAM1_RST_N	DO	Camera 1 reset, 1.8 V level	RST for CSI1
21	GPIO116_CAM0_RST_N	DO	Camera 0 reset, 1.8 V level	RST for CSI0
18,20	VREG_L9B_2P9	PO	1.8/2.95 V output	TF card power
22	SDC2_CD_N	DI	SD card detect, active low	TF card
24	SDC2_DATA_3_1V2	I/O	SD data line, 1.2 V level	TF card
26	SDC2_DATA_2_1V2	I/O	SD data line, 1.2 V level	TF card
28	SDC2_DATA_1_1V2	I/O	SD data line, 1.2 V level	TF card
30	SDC2_DATA_0_1V2	I/O	SD data line, 1.2 V level	TF card
32	SDC2_CMD_1V2	I/O	SD command line, 1.2 V level	TF card
34	SDC2_CLK_1V2	DO	SD clock line, 1.2 V level	TF card
23	AON_CCI_I2C_SDA3	I/O	Camera-dedicated I2C	AON, for CSI4
25	AON_CCI_I2C_SCL3	I/O	Camera-dedicated I2C	AON, for CSI4
27	CCI_I2C_SDA2	I/O	Camera-dedicated I2C	For CSI3
29	CCI_I2C_SCL2	I/O	Camera-dedicated I2C	For CSI3
31	CCI_I2C_SDA1	I/O	Camera-dedicated I2C	For CSI2
33	CCI_I2C_SCL1	I/O	Camera-dedicated I2C	For CSI2
35	CCI_I2C_SDA0	I/O	Camera-dedicated I2C	For CSI0/1
37	CCI_I2C_SCL0	I/O	Camera-dedicated I2C	For CSI0/1
41	CAM_AON_MCLK4	DO	Camera master clock	AON, for CSI4
43	CAM_MCLK3	DO	Camera master clock	For CSI3
45	CAM_MCLK2	DO	Camera master clock	For CSI2
47	CAM_MCLK1	DO	Camera master clock	For CSI1
49	CAM_MCLK0	DO	Camera master clock	For CSI0
53	CSI3_C2_LN3_M	AO	MIPI CSI3 data signal	4-Lane
55	CSI3_B2_LN3_P	AO	MIPI CSI3 data signal	4-Lane
57	CSI3_A2_LN2_M	AO	MIPI CSI3 data signal	4-Lane
59	CSI3_C1_LN2_P	AO	MIPI CSI3 data signal	4-Lane
61	CSI3_B1_LN1_M	AO	MIPI CSI3 data signal	4-Lane
63	CSI3_A1_LN1_P	AO	MIPI CSI3 data signal	4-Lane
65	CSI3_C0_LN0_M	AO	MIPI CSI3 data signal	4-Lane
67	CSI3_B0_LN0_P	AO	MIPI CSI3 data signal	4-Lane
71	CSI3_A0_CLK_M	AO	MIPI CSI3 clock signal	4-Lane
73	CSI3_NC_CLK_P	AO	MIPI CSI3 clock signal	4-Lane
77	CSI1_C2_LN3_M	AO	MIPI CSI1 data signal	4-Lane
79	CSI1_B2_LN3_P	AO	MIPI CSI1 data signal	4-Lane
81	CSI1_A2_LN2_M	AO	MIPI CSI1 data signal	4-Lane
83	CSI1_C1_LN2_P	AO	MIPI CSI1 data signal	4-Lane
85	CSI1_B1_LN1_M	AO	MIPI CSI1 data signal	4-Lane
87	CSI1_A1_LN1_P	AO	MIPI CSI1 data signal	4-Lane
89	CSI1_C0_LN0_M	AO	MIPI CSI1 data signal	4-Lane
91	CSI1_B0_LN0_P	AO	MIPI CSI1 data signal	4-Lane
95	CSI1_A0_CLK_M	AO	MIPI CSI1 clock signal	4-Lane
97	CSI1_NC_CLK_P	AO	MIPI CSI1 clock signal	4-Lane
38	CSI4_C2_LN3_M	AO	MIPI CSI4 data signal	AON, 4-Lane
40	CSI4_B2_LN3_P	AO	MIPI CSI4 data signal	AON, 4-Lane
42	CSI4_A2_LN2_M	AO	MIPI CSI4 data signal	AON, 4-Lane
44	CSI4_C1_LN2_P	AO	MIPI CSI4 data signal	AON, 4-Lane
46	CSI4_B1_LN1_M	AO	MIPI CSI4 data signal	AON, 4-Lane
48	CSI4_A1_LN1_P	AO	MIPI CSI4 data signal	AON, 4-Lane
50	CSI4_C0_LN0_M	AO	MIPI CSI4 data signal	AON, 4-Lane
52	CSI4_B0_LN0_P	AO	MIPI CSI4 data signal	AON, 4-Lane
56	CSI4_A0_CLK_M	AO	MIPI CSI4 clock signal	AON, 4-Lane
58	CSI4_NC_CLK_P	AO	MIPI CSI4 clock signal	AON, 4-Lane
62	CSI2_C2_LN3_M	AO	MIPI CSI2 data signal	4-Lane
64	CSI2_B2_LN3_P	AO	MIPI CSI2 data signal	4-Lane
66	CSI2_A2_LN2_M	AO	MIPI CSI2 data signal	4-Lane
68	CSI2_C1_LN2_P	AO	MIPI CSI2 data signal	4-Lane
70	CSI2_B1_LN1_M	AO	MIPI CSI2 data signal	4-Lane
72	CSI2_A1_LN1_P	AO	MIPI CSI2 data signal	4-Lane
74	CSI2_C0_LN0_M	AO	MIPI CSI2 data signal	4-Lane
76	CSI2_B0_LN0_P	AO	MIPI CSI2 data signal	4-Lane
80	CSI2_A0_CLK_M	AO	MIPI CSI2 clock signal	4-Lane
82	CSI2_NC_CLK_P	AO	MIPI CSI2 clock signal	4-Lane
86	CSI0_B1_LN1_M	AO	MIPI CSI0 data signal	2-Lane
88	CSI0_A1_LN1_P	AO	MIPI CSI0 data signal	2-Lane
90	CSI0_C0_LN0_M	AO	MIPI CSI0 data signal	2-Lane
92	CSI0_B0_LN0_P	AO	MIPI CSI0 data signal	2-Lane
96	CSI0_A0_CLK_M	AO	MIPI CSI0 clock signal	2-Lane
98	CSI0_NC_CLK_P	AO	MIPI CSI0 clock signal	2-Lane
36,39,51,54,60,69,75,78,84,93,94,99,100	GND	G	Digital ground

J3 Pin Definition

PIN#	Pin Signal	I/O	Description	Notes
1	DEBUG_UART_TX	DO	UART data output, 1.8 V level	Debug UART
3	DEBUG_UART_RX	DI	UART data input, 1.8 V level	Debug UART
5	GPIO30_UART1_TXD	DO	UART data output, 1.8 V level	General-purpose UART
7	GPIO31_UART1_RXD	DI	UART data input, 1.8 V level	General-purpose UART
2	GPIO36_SPI_MISO	DI	SPI MISO, 1.8 V level	General-purpose SPI
4	GPIO37_SPI_MOSI	DO	SPI MOSI, 1.8 V level	General-purpose SPI
6	GPIO38_SPI_CLK	DO	SPI clock, 1.8 V level	General-purpose SPI
8	GPIO39_SPI_CSN	DO	SPI chip select, 1.8 V level	General-purpose SPI
10	GPIO42_INT_N*	I/O	GPIO42, 1.8 V level
9	GPIO56_INT_N*	I/O	GPIO56, 1.8 V level
15	GPIO32_SPI_MISO	DI	SPI MISO, 1.8 V level	General-purpose SPI
17	GPIO33_SPI_MOSI	DO	SPI MOSI, 1.8 V level	General-purpose SPI
19	GPIO34_SPI_CLK	DO	SPI clock, 1.8 V level	General-purpose SPI
21	GPIO35_SPI_CSN	DO	SPI chip select, 1.8 V level	General-purpose SPI
11	GPIO28*	DO	GPIO28, 1.8 V level
13	GPIO29	DO	GPIO29, 1.8 V level
12	GPIO40*	DO	GPIO40, 1.8 V level
14	GPIO41*	DO	GPIO41, 1.8 V level
16	GPIO44_TP_I2C_SDA	I/O	General-purpose I2C bus, 1.8 V level	I2C touch communication
18	GPIO45_TP_I2C_SCL	DO	General-purpose I2C bus, 1.8 V level	I2C touch communication
20	GPIO133*	I/O	GPIO133, 1.8 V level
22	GPIO137*	I/O	GPIO137, 1.8 V level
24	GPIO25_TP_INT*	DI	GPIO25, 1.8 V level	I2C touch interrupt
26	GPIO24_TP_RST	DO	GPIO24, 1.8 V level	I2C touch reset
23	FORCE_USB_BOOT	DI	Flashing mode signal
25	GPIO_188_I2C_SDA	I/O	General-purpose I2C bus, 1.8 V level
27	GPIO_189_I2C_SCL	DO	General-purpose I2C bus, 1.8 V level
29	GPIO125_I2S_MCLK	I/O	I2S master clock, 1.8 V level	Non-LPI I2S
33	GPIO126_I2S_SCK	I/O	I2S clock, 1.8 V level	Non-LPI I2S
35	GPIO129_I2S_WS	I/O	I2S word select, 1.8 V level	Non-LPI I2S
37	GPIO127_I2S_DATA0	I/O	I2S data channel 0, 1.8 V level	Non-LPI I2S
39	GPIO128_I2S_DATA1	I/O	I2S data channel 1, 1.8 V level	Non-LPI I2S
30	GPIO48*	I/O	GPIO48, 1.8 V level
32	GPIO49	I/O	GPIO49, 1.8 V level
34	GPIO50_UART2_TXD	DO	UART data output, 1.8 V level	General-purpose UART
36	GPIO51_UART2_RXD	DI	UART data input, 1.8 V level	General-purpose UART
38	GPIO202	I/O	GPIO202, 1.8 V level
40	GPIO203*	I/O	GPIO203, 1.8 V level
41	GPIO74_UART5_TX	DO	UART data output, 1.8 V level	General-purpose UART
43	GPIO75_UART5_RX	DI	UART data input, 1.8 V level	General-purpose UART
42	GPIO_204	DO	GPIO204, 1.8 V level	Host wake Bluetooth signal
44	GPIO_205*	DI	GPIO205, 1.8 V level	Wi-Fi wake host signal
45	GPIO_76_BT_UART_CTS	DO	4-wire UART, 1.8 V level	AP6275P, Bluetooth
47	GPIO_77_BT_UART_RFR	DI	4-wire UART, 1.8 V level	AP6275P, Bluetooth
49	GPIO_78_BT_UART_TX	DO	4-wire UART, 1.8 V level	AP6275P, Bluetooth
51	GPIO_79_BT_UART_RX	DI	4-wire UART, 1.8 V level	AP6275P, Bluetooth
46	GPIO84*	DI	GPIO84, 1.8 V level	Bluetooth wake host signal
48	GPIO85*	I/O	GPIO85, 1.8 V level
50	GPIO86*	I/O	GPIO86, 1.8 V level
52	GPIO87*	I/O	GPIO87, 1.8 V level
53	GPIO80_SPI_MISO	DI	SPI MISO, 1.8 V level	General-purpose SPI
55	GPIO81_SPI_MOSI	DO	SPI MOSI, 1.8 V level	General-purpose SPI
57	GPIO82_SPI_CLK	DO	SPI clock, 1.8 V level	General-purpose SPI
59	GPIO83_SPI_CSN	DO	SPI chip select, 1.8 V level	General-purpose SPI
54	GPIO_80	DO	GPIO80, 1.8 V level	Wi-Fi enable signal
56	GPIO_81	DO	GPIO81, 1.8 V level	Bluetooth enable signal
58	GPIO90	I/O	GPIO90, 1.8 V level
60	GPIO91	I/O	GPIO91, 1.8 V level
61	GPIO58_UART6_TX	DO	UART data output, 1.8 V level	General-purpose UART
63	GPIO59_UART6_RX	DI	UART data input, 1.8 V level	General-purpose UART
62	PM8010_1_RESET_N	DO	Reserved PM8010 reset signal
64	PM8010_2_RESET_N	DO	Reserved PM8010 reset signal
67	SM_PCIE0_RESET_N	DO	PCIe0 reset, 1.8 V level	PCIe Gen3
69	SM_PCIE0_CLK_REQ_N	DI	PCIe0 clock request, 1.8 V level	PCIe Gen3
71	SM_PCIE0_WAKE_N	DI	PCIe0 wake, 1.8 V level	PCIe Gen3
75	SOM_PCIE0_RX1_P	AI	PCIe0 data input	PCIe Gen3
77	SOM_PCIE0_RX1_M	AI	PCIe0 data input	PCIe Gen3
79	SOM_PCIE0_RX0_M	AI	PCIe0 data input	PCIe Gen3
81	SOM_PCIE0_RX0_P	AI	PCIe0 data input	PCIe Gen3
85	SOM_PCIE0_REFCLK_M	DO	PCIe0 reference clock	PCIe Gen3
87	SOM_PCIE0_REFCLK_P	DO	PCIe0 reference clock	PCIe Gen3
91	SOM_PCIE0_TX1_M	AO	PCIe0 data output	PCIe Gen3
93	SOM_PCIE0_TX1_P	AO	PCIe0 data output	PCIe Gen3
95	SOM_PCIE0_TX0_M	AO	PCIe0 data output	PCIe Gen3
97	SOM_PCIE0_TX0_P	AO	PCIe0 data output	PCIe Gen3
68	SM_PCIE1_RESET_N	DO	PCIe1 reset, 1.8 V level	PCIe Gen4
70	SM_PCIE1_CLK_REQ_N	DI	PCIe1 clock request, 1.8 V level	PCIe Gen4
72	SM_PCIE1_WAKE_N	DI	PCIe1 wake, 1.8 V level	PCIe Gen4
76	SOM_PCIE1_RX1_M	AI	PCIe1 data input	PCIe Gen4
78	SOM_PCIE1_RX1_P	AI	PCIe1 data input	PCIe Gen4
80	SOM_PCIE1_RX0_P	AI	PCIe1 data input	PCIe Gen4
82	SOM_PCIE1_RX0_M	AI	PCIe1 data input	PCIe Gen4
86	SOM_PCIE1_REFCLK_M	DO	PCIe1 reference clock	PCIe Gen4
88	SOM_PCIE1_REFCLK_P	DO	PCIe1 reference clock	PCIe Gen4
92	SOM_PCIE1_TX1_M	AO	PCIe1 data output	PCIe Gen4
94	SOM_PCIE1_TX1_P	AO	PCIe1 data output	PCIe Gen4
96	SOM_PCIE1_TX0_M	AO	PCIe1 data output	PCIe Gen4
98	SOM_PCIE1_TX0_P	AO	PCIe1 data output	PCIe Gen4
28,31,65,66,73,74,83,84,89,90,99,100	GND	G	Digital ground

J4 Pin Definition

PIN#	Pin Signal	I/O	Description	Notes
1	GPIO_47_DP_HPD	DI	DP hot-plug detect	DP specific
2	GPIO_176*	I/O	GPIO176, 1.8 V level
3	GPIO_46*	I/O	GPIO46, 1.8 V level
4	GPIO_175	I/O	GPIO175, 1.8 V level
5	GPIO_108	I/O	GPIO108, 1.8 V level
6	GPIO_174_I2S1_DAT1	I/O	I2S1 data signal	LPI I2S
8	GPIO_173_I2S1_DATA0	I/O	I2S1 data signal	LPI I2S
10	GPIO_172_I2S1_WS	DO	I2S1 word select	LPI I2S
12	GPIO_171_I2S1_CLK	DO	I2S1 clock	LPI I2S
7	GPIO55_UART_RXD	DI	UART data input, 1.8 V level	General-purpose UART
9	GPIO54_UART_TXD	DO	UART data output, 1.8 V level	General-purpose UART
11	GPIO_164_WDOG_DISABLE	I/O	Reserved config GPIO, WDOG enable
13	GPIO183	I/O	GPIO183, 1.8 V level
15	GPIO182_HP_DET_L	DI	Headphone insertion detect	For WCD9385
17	GPIO181_USB30_PWR_EN*	I/O	GPIO181, 1.8 V level
19	GPIO180_USB20_PWR_EN	I/O	GPIO180, 1.8 V level
16	GPIO_168_SWR_RX_CLK	DO	SoundWire RX clock	For WCD9385
18	GPIO_169_SWR_RX_DATA0	I/O	SoundWire RX data	For WCD9385
20	GPIO_170_SWR_RX_DATA1	I/O	SoundWire RX data	For WCD9385
22	GPIO_179_SWR_TX_DATA2	I/O	SoundWire TX data	For WCD9385
24	GPIO_167_SWR_TX_DATA1	I/O	SoundWire TX data	For WCD9385
26	GPIO_166_SWR_TX_DATA0	I/O	SoundWire TX data	For WCD9385
28	GPIO_165_SWR_TX_CLK	DO	SoundWire TX clock	For WCD9385
23	USB0_DP_AUX_P	I/O	DP auxiliary signal
25	USB0_DP_AUX_N	I/O	DP auxiliary signal
29	USB0_SS_TX1_M	AI/AO	USB 3.1 / DP output data
31	USB0_SS_TX1_P	AI/AO	USB 3.1 / DP output data
33	USB0_SS_TX0_M	AI/AO	USB 3.1 / DP output data
35	USB0_SS_TX0_P	AI/AO	USB 3.1 / DP output data
39	USB0_SS_RX0_P	AI/AO	USB 3.1 / DP input data
41	USB0_SS_RX0_M	AI/AO	USB 3.1 / DP input data
43	USB0_SS_RX1_P	AI/AO	USB 3.1 / DP input data
45	USB0_SS_RX1_M	AI/AO	USB 3.1 / DP input data
32	AON_CAM_STB1	DO	AON CAM Standby signal	CAM
34	AON_CAM_STB0	DO	AON CAM Standby signal	CAM
36	GPIO195_SPI_CSN	DO	SPI chip select, 1.8 V level	SSC_QUP_SPI
38	GPIO194_SPI_SCK	DO	SPI clock, 1.8 V level	SSC_QUP_SPI
40	GPIO193_SPI_MOSI	DO	SPI MOSI, 1.8 V level	SSC_QUP_SPI
42	GPIO192_SPI_MISO	DI	SPI MISO, 1.8 V level	SSC_QUP_SPI
44	GPIO191_I2C_SCL	DO	I2C clock, 1.8 V level	SSC_QUP_I2C
46	GPIO190_I2C_SDA	I/O	I2C data, 1.8 V level	SSC_QUP_I2C
48	GPIO_201*	I/O	GPIO201, 1.8 V level
50	GPIO_200*	I/O	GPIO200, 1.8 V level
52	GPIO_199*	I/O	GPIO199, 1.8 V level
54	GPIO_198*	I/O	GPIO198, 1.8 V level
49	USB0_SBU2	I/O	USB0 SBU signal	For Type-C
51	USB0_SBU1	I/O	USB0 SBU signal	For Type-C
53	USB0_CC2	I/O	USB0 CC signal	For Type-C
55	USB0_CC1	I/O	USB0 CC signal	For Type-C
56	GPIO197*	I/O	GPIO197, 1.8 V level
58	GPIO196*	I/O	GPIO196, 1.8 V level
57	RGB_BLUE	AO	Blue LED high-side current source
59	RGB_GREEN	AO	Green LED high-side current source
61	RGB_RED	AO	Red LED high-side current source
60	GPIO_154	I/O	GPIO198, 1.8 V level	Config pin, must not pull up during boot
62	USB0_CC_DIR	DO	Indicates Type-C connection orientation
63,65	FLASH_LED2	AO	Flash LED current source
67,69	FLASH_LED1	AO	Flash LED current source
68,70	VPH_PWR	AO	3.6 V output
75	PM8550_GPIO11	I/O	PM8550 PWM3
73	PM8550_GPIO8	I/O	PM8550 GPIO
14,21,27,30,37,47,64,66,71,73,79,72,74,76,78,80	GND	G	Digital ground
